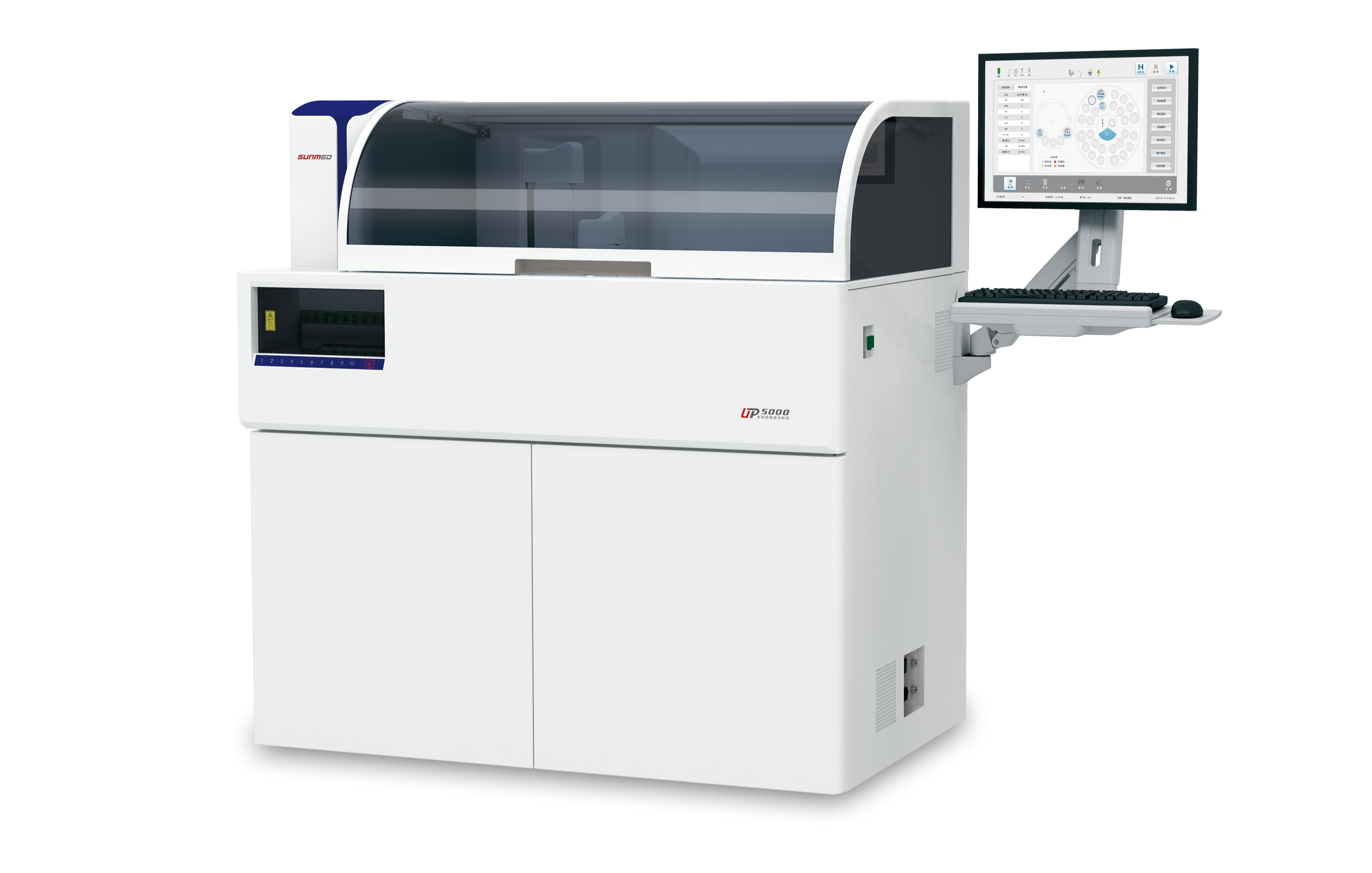

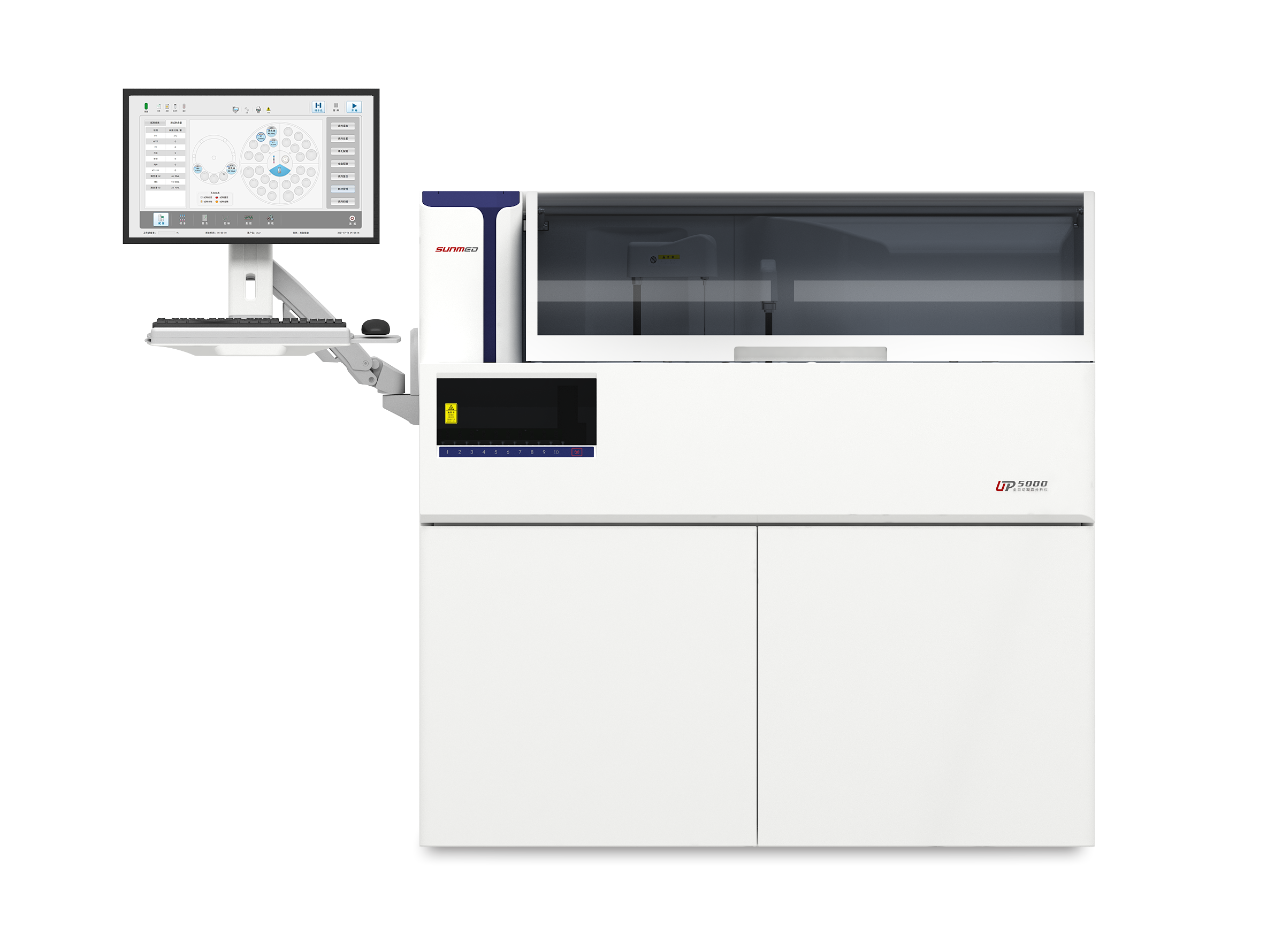

UP5000
coagulation analyzer

The classic optical detection principle, multi-wavelength light source design, and uninterrupted sample/cuvette adding, empowering accurate and rapid clinical diagnosis and treatment.

Business Consulting

Rational Management System
- Reagent Management System
  28 reagent positions with refrigeration function, 4 diluent positions, 1 rinse station, Reagent position tilt design

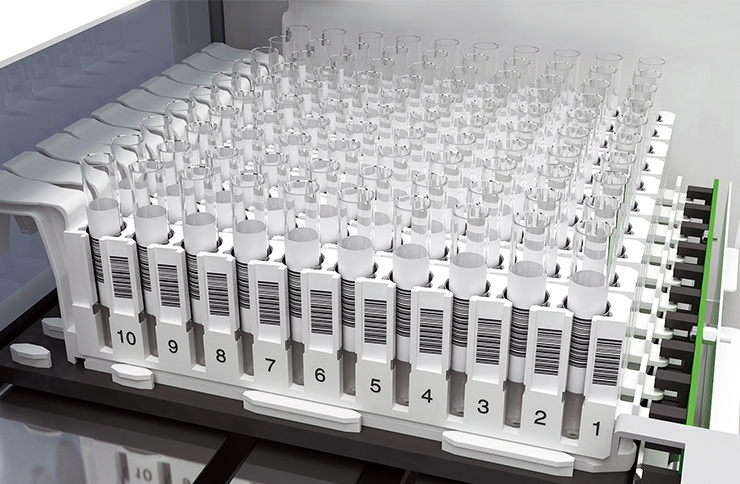

- Sample Management System
  100 sample positions; continuous loading and automatic injection

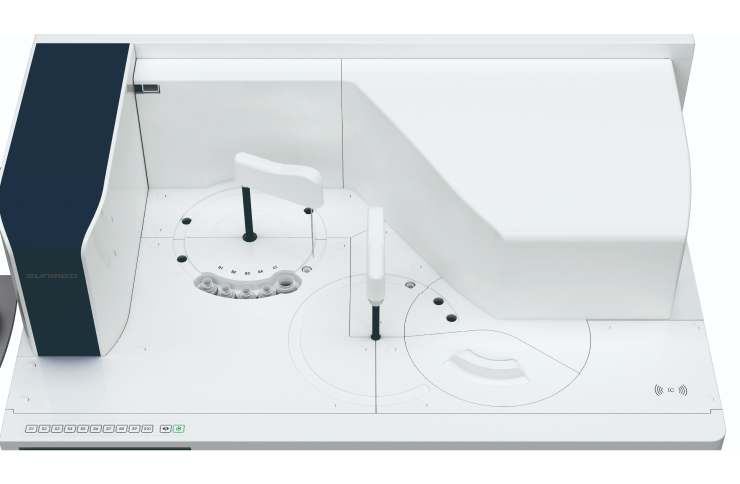

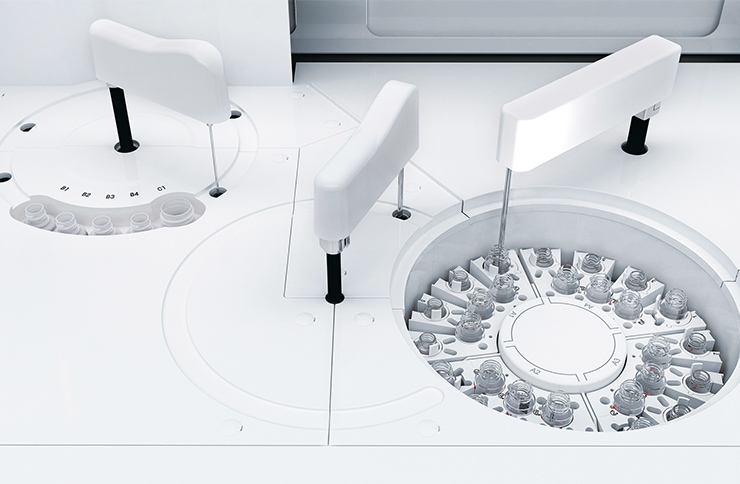

- Sample Adding Management System
  Two reagent probes and 1 sample probe add reagents independently
- Measurement Management System
  LED light source, With 20 full-wavelength detection channels for coagulation, immunoturbidimetry, chromogenic substrate assay, Multi-wavelength (405nm/570nm/660nm/800nm) design, realize HlL intelligent anti-interference
- Automatic Cuvette Selection and Transmission System
  2000 cuvettes capacity with continuous loading, Selection mechanism automatically selects and transmits them to the reagent position, Missing cuvette alarm function
- Barcode Management System
  Automatically sample barcode reading, Automatically reagent barcode reading, Managing reagent and material reasonably
Diverse Test Principles
- Coagulation Method
  PT, APTT, TT, FlB, APCR, LA1, LA2, PS...
- Immunoturbidimetric Assay
  D-Dimer, FDP, VWF...
- Chromogenic Substrate Assay
  AT-III, PC, HEP, PLG, Anti-Xa...
More Efficient and Stable Performance
- Varieties of standard curve plotting
- PT/APTT/TT/FlB/D-Dimer throughput 420 Ts/H
- 32 independent incubation positions for batch pre-warming
- Excellent repeatable, accurate and linear test result
- Reliable auto-retest function
- Automatic APTT mixing study
- Meet emergency and outpatient service requirements by STAT function

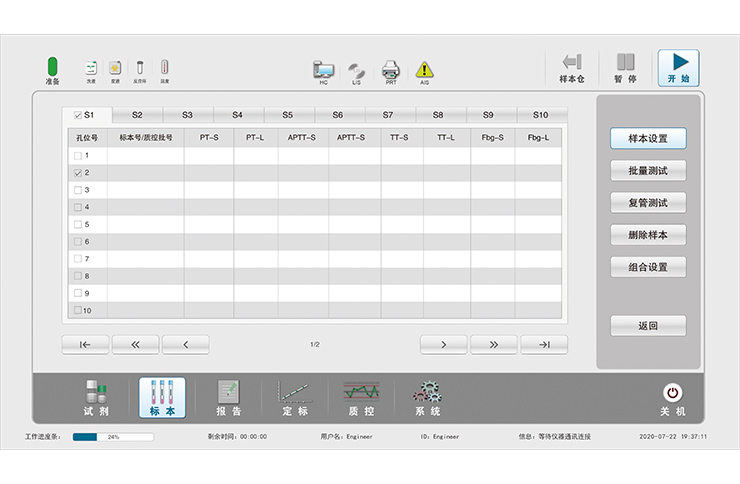

Humanized Operation System
- Secure and stable Windows OS, with Chinese/English language interface
- Super data storage capacity
- Automatic dilution, calibration and screening analysis, Alarm function with real-time reflecting malfunction
